New ATEX Certified Air Hydraulic Torque Wrench Pumps Cut Delays While Enhancing Safety and Ease of Use
Nov 08 2011
A new air-hydraulic torque wrench pump from Enerpac (Australia) has been introduced for reliable high performance, ease of use and safety in challenging and potentially hazardous environments including oil and gas, energy, mining and onshore and offshore infrastructure projects.

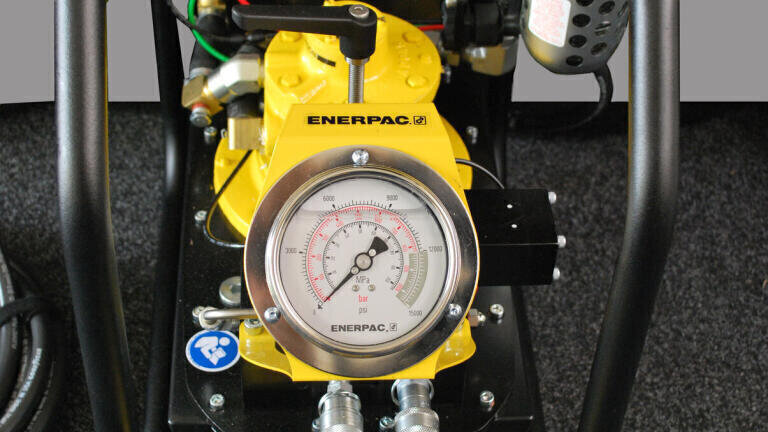

The ZA4 series ZA4208TX-QE100 pump, which is ATEX 95 certified for use in potentially explosive atmospheres, features a high efficiency pump design with higher oil flow and bypass pressure and enhanced two speed operation to reduce cycle time for improved productivity.
The new ZA4 modular pump is custom engineered for extended operation in its first stage, to deliver extended performance in ranges required by users working on maintenance and fabrication applications such as piplelines, pressure vessels, tanks, metal structures, rigs and onshore and offshore machinery.
Wilkerson reclassifer exhaust technology has been employed to prevent motors freezing and reduce exhaust noise, while a larger air motor piston allows the pump to operate with air input as low as 2 bar (40 PSI), says Enerpac Manager, Oil and Gas Industry, Mr Slade Greenaway.
“The great advantage of lower operating pressures is that multiple torque wrenches can be operated from the one source of compressed air, he says
Further efficiency and durability features of the new pumps include; simplified air logic circuit to increase efficiency and reduce redundant components, pressure gauges that can be re-calibrated on site, rather than sent away for periodic maintenance and an enhanced oil mist lubricator to help prevent adjusting screw failure.
Stainless steel relief adjuster valve and plated bolts offer durability, whilst the roll frame permits a crow’s foot connector to be screwed directly into the air outlet. The air pressure gauge is mounted on 45 deg fitting for easy reading.
The new ZA4208TX-QE100 model pump is part of the ongoing development of the broader ZA4 series, which is available in reservoir capacities from 4-40 litres.
