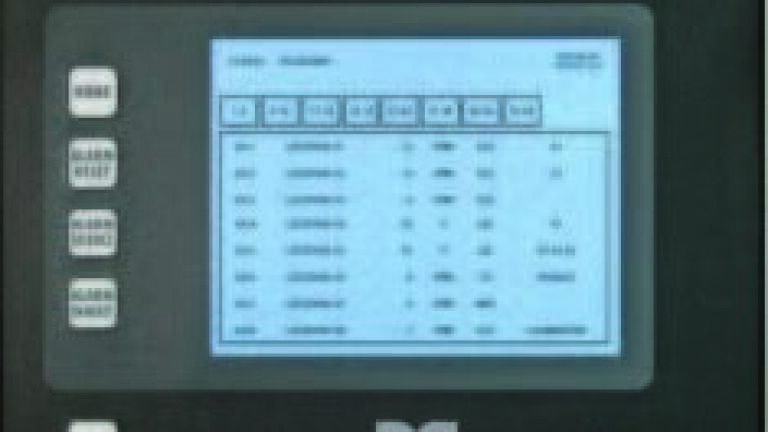

MCX-32 Multi-Channel Integrated Control System

Detcon’s (USA) Model MCX-32 is an "auto-configurable" multichannel integrated control system with a capacity of 64 active channels. It can receive and supervise inputs from a wide range of field devices with either a 4-20mA DC or serial output. Standard serial protocol is RS-485 Modbus RTU. The Model MCX-32 controller features a flexible design that allows the user to customise a system by choosing from a selection addressable field devices or by using addressable input and output modules. The system also includes a 10/100 BaseT Ethernet Port for remotely monitoring from a desktop PC or handheld device with an internet connection. The MCX-32 also features data logging that records information for up to 90 days. Four enclosure options are available: NEMA 1 panel mount, NEMA 1 rack mount, NEMA 4X epoxy fiberglass, and NEMA 4X 316 Stainless Steel.
